首页 > Products > Low Speed DC 24V Gearbox motor for Vending Machine
Low Speed DC 24V Gearbox motor for Vending Machine
单价 $7.80 / Piece对比
询价 暂无
浏览 23
发货 China预售，付款后5天内
库存 100000Piece起订5000Piece
品牌 Casic Motor
Rated Voltage 24 VCD
Rated Current 0.12A Max
Rated Torque 0.2 N.m
过期 2021-03-18 已过期
更新 2020-03-29 14:40
该Products已过期
详细信息
Low Speed Low Torque DC 24V Reduction Motor With Gearbox for Coffee Vending Machine



Product Description

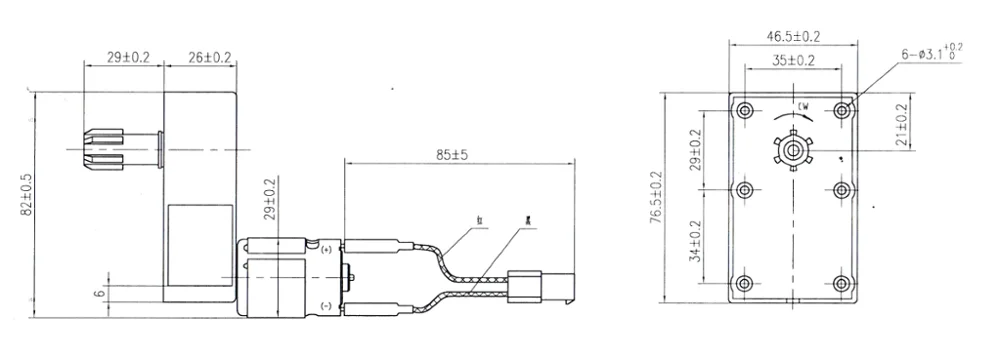

seline;">Outline Dimension

paste-pic-dp_uuid_lo4ay

seline;">Technical Data

Model ZYT28T-CS-010 Direction of  Rotation CCW
Rated Voltage 24 VCD Rated Current 0.12A Max
No Load Current 0.085A Max Rated Speed 45 rpm ± 4
No Load Speed 48 rpm ± 4 Noise 60 dBA Max
Rated Torque 0.2 N.m Gear Ratio 135.45:1

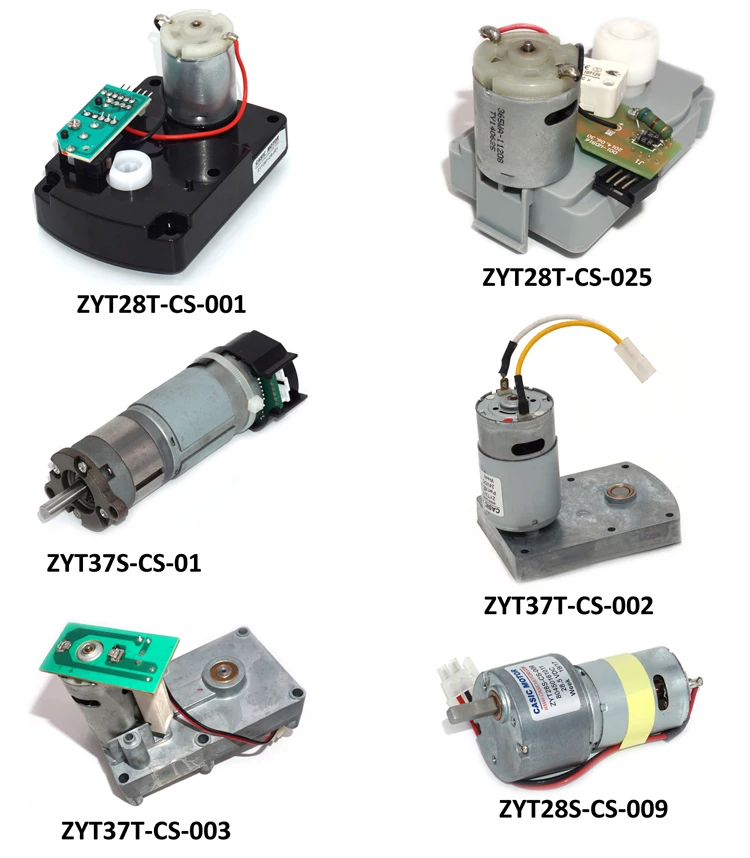

seline;">More Models for Option
